Velodyne Acoustics Deep Waves Subwoofers

Velodyne Acoustics Deep Waves Subwoofers

$2,199.00 USD
$2,199.00 USD
Sale Sold out
Model

Extensive customization options for best low frequency performance

App works for iOS only

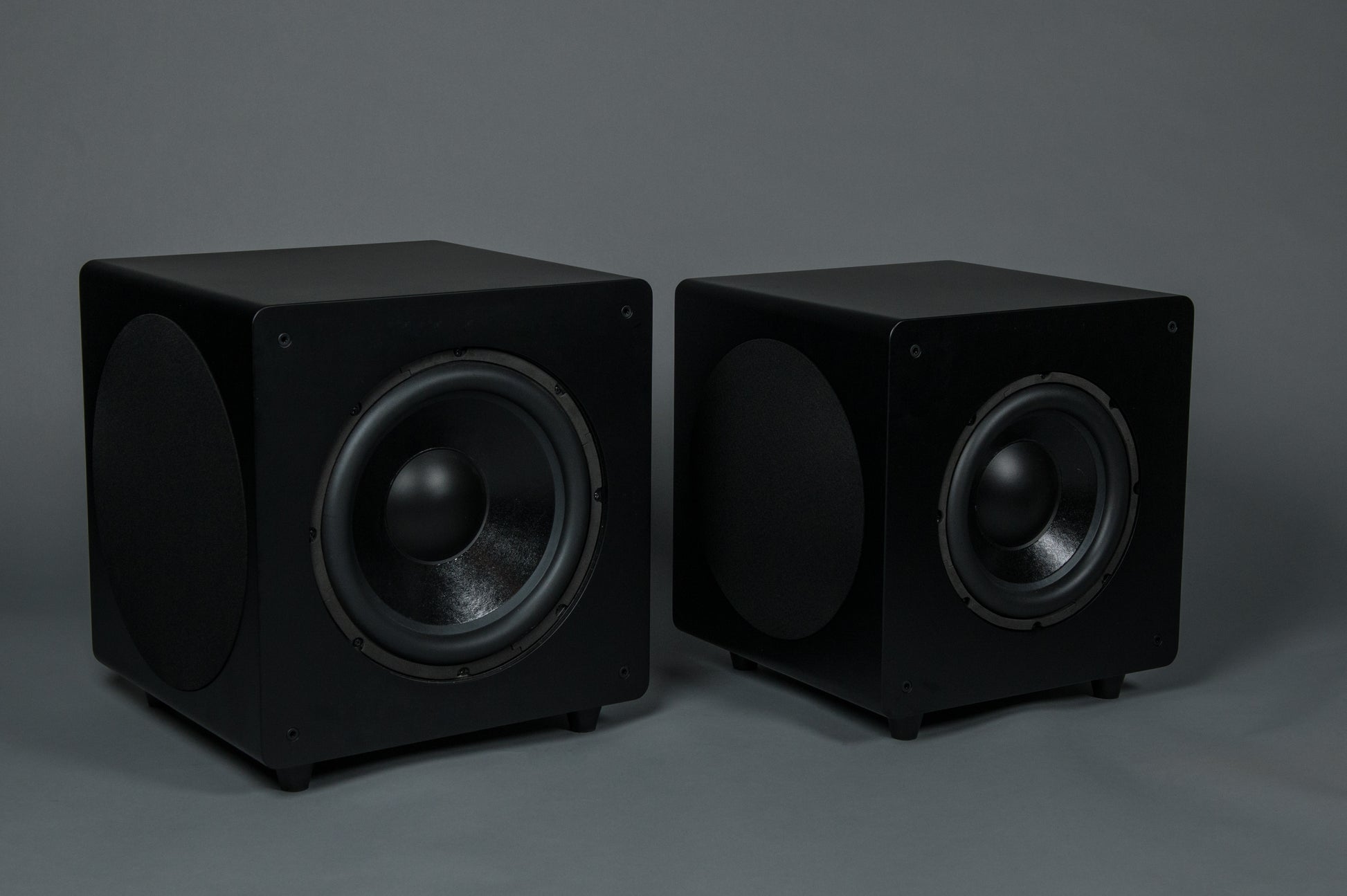

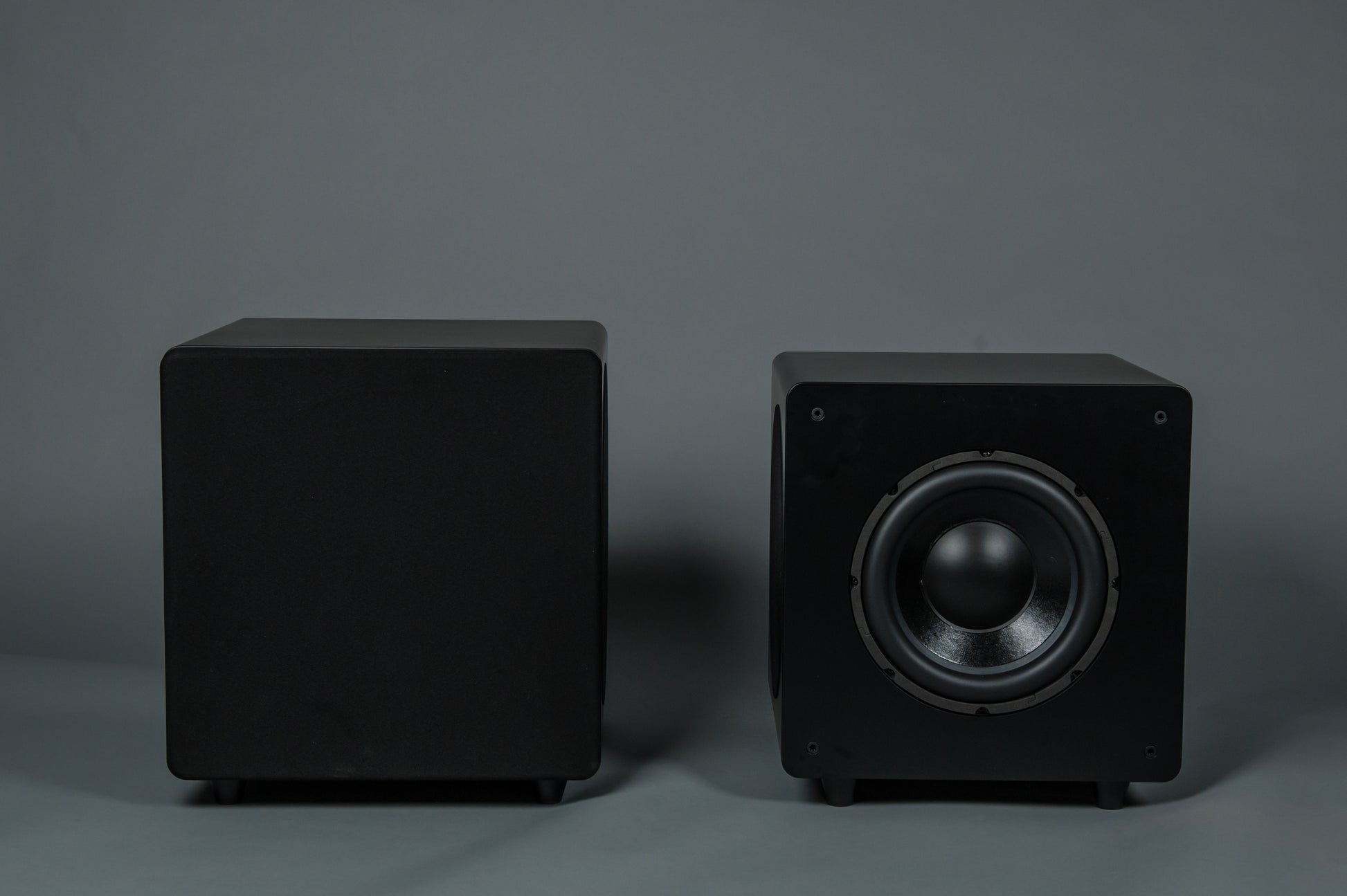

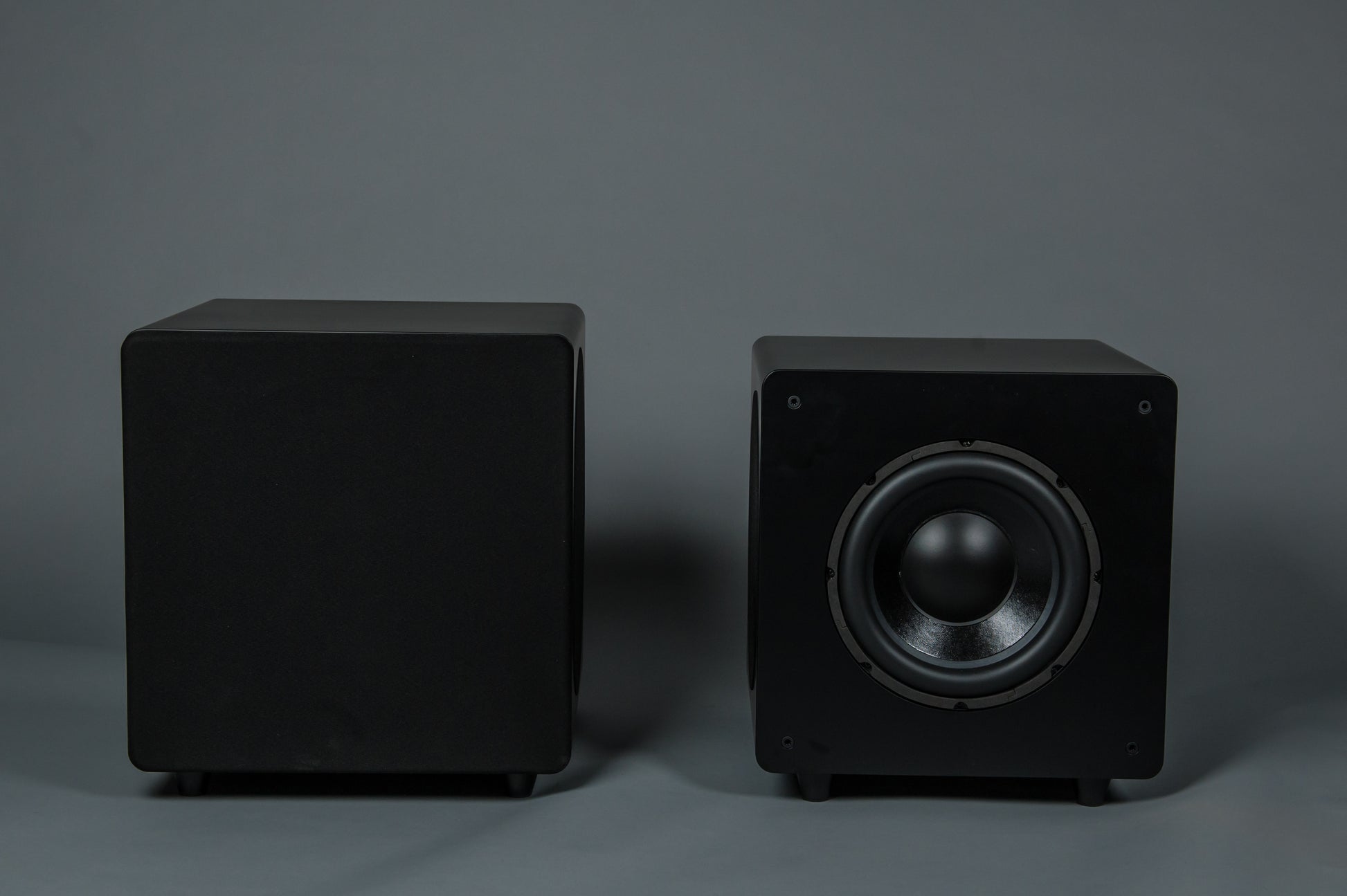

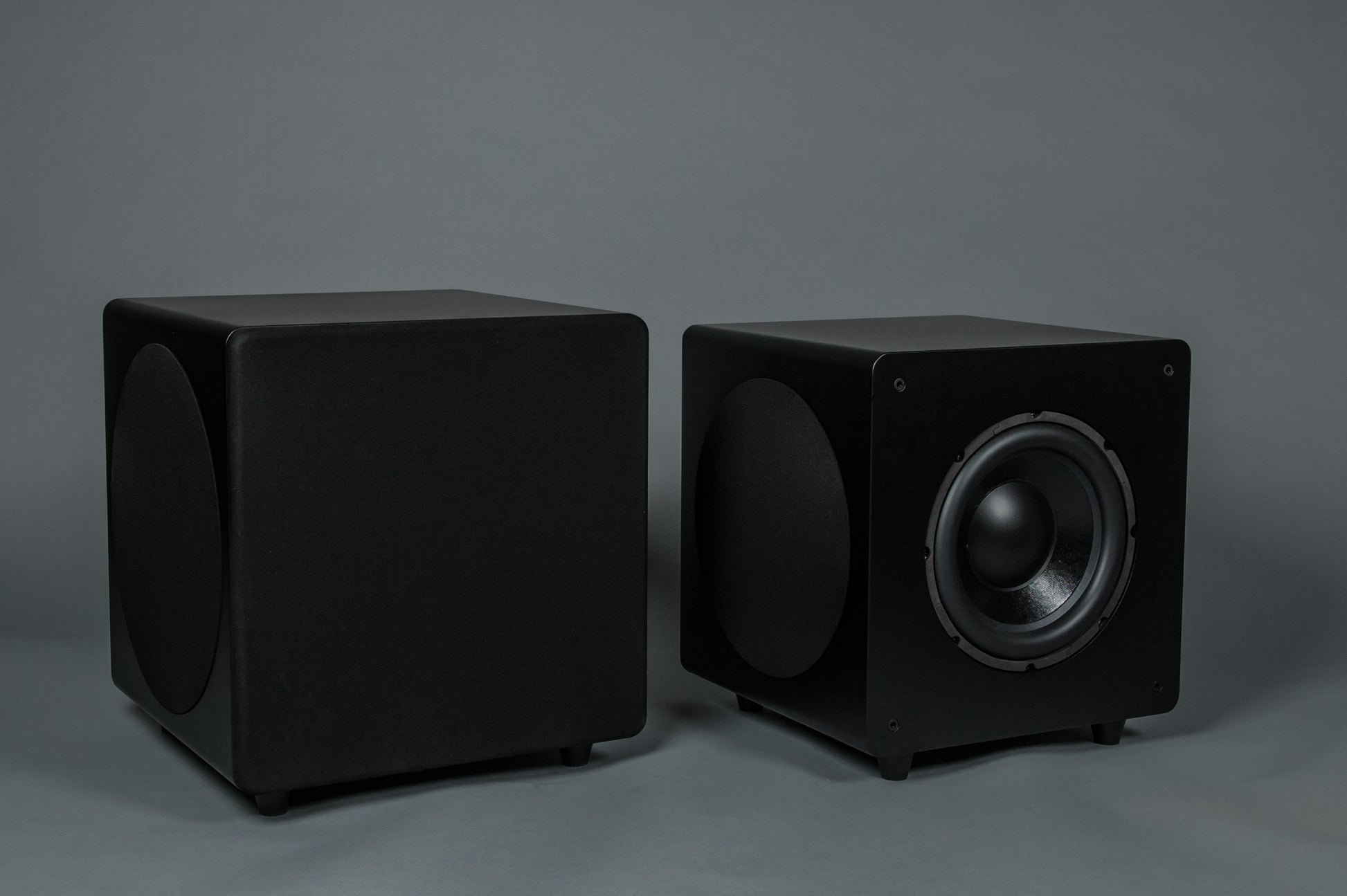

With the high-quality, matte black enclosure and a front-firing active driver with side-firing passive radiators, the Deep Waves series ensures an undreamt-of presence in the home theater. New technology also makes app(iOS only, Android not supported at this time) control from the listening position a uniquely convenient experience.

 Specifications Images Downloads

The Features

  • A 2.5-inch voice coil with four-layer winding provides a high and extremely precise aligned excursion
  • High-quality MDF cabinet and additional bracing minimize disturbing resonances
  • The iWoofer™ app supports the optimal adjustment of the subwoofer to the room and your own listening preferences

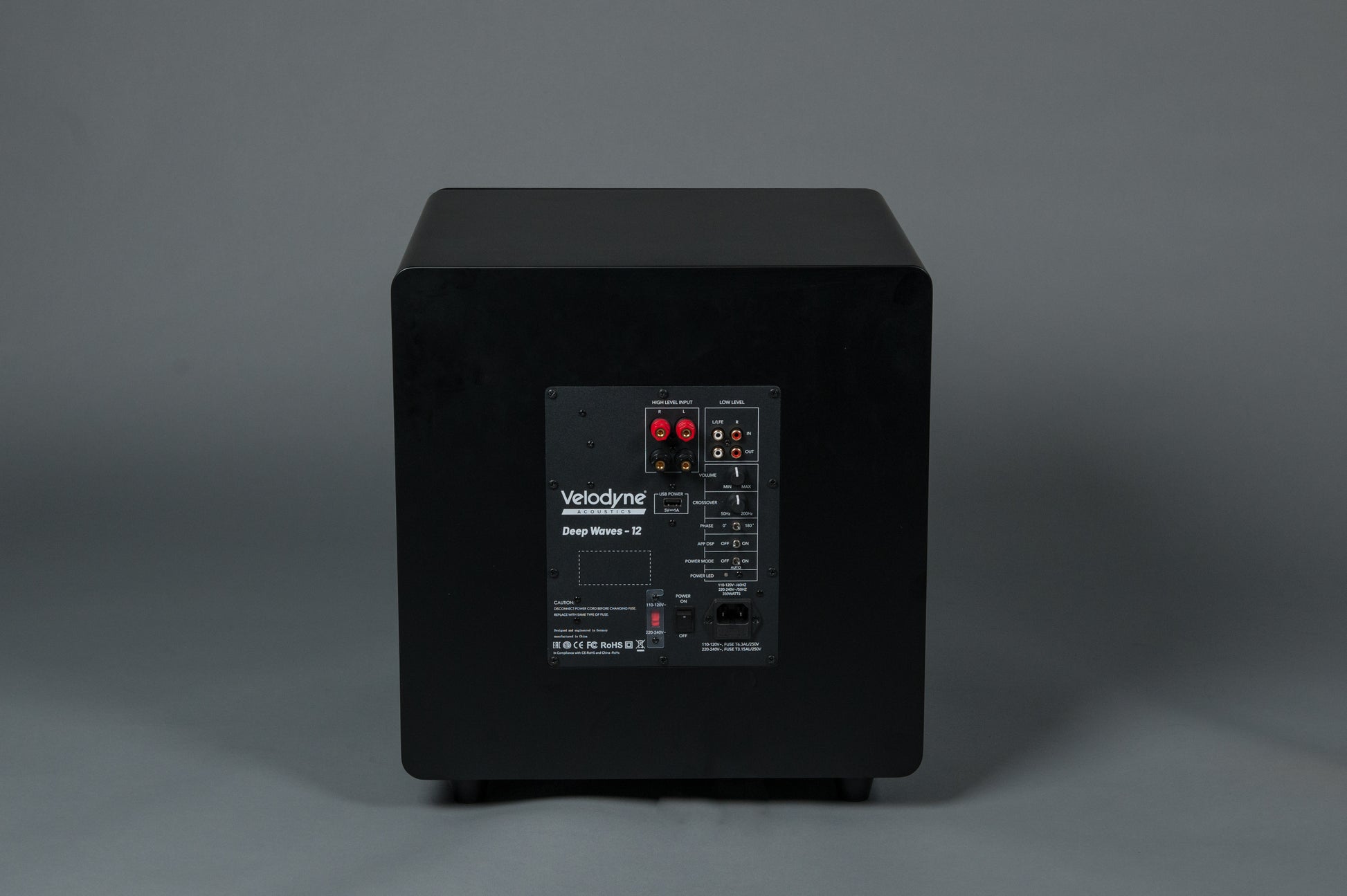

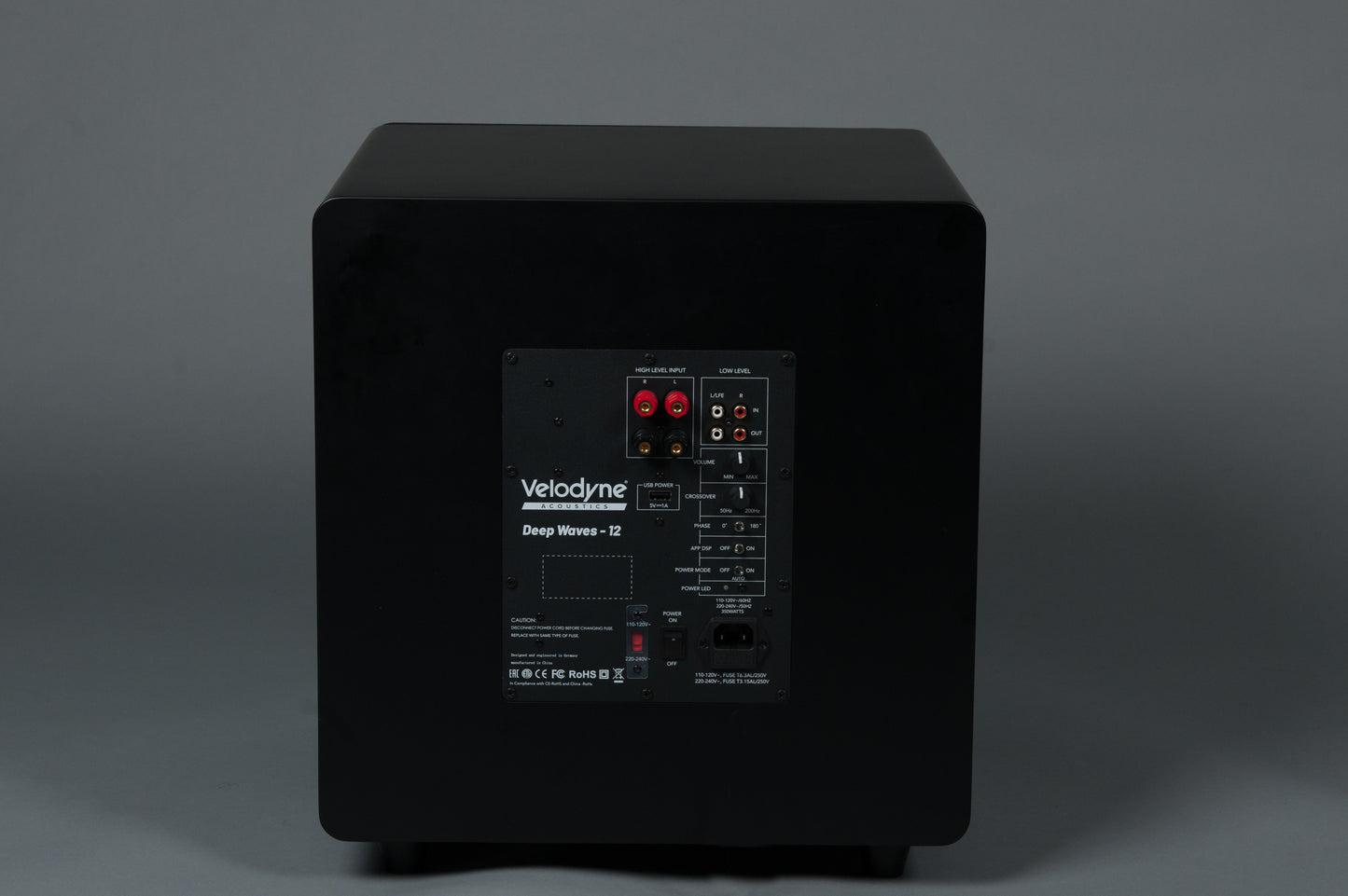

  • Connection options on the rear panel include RCA jacks for the LFE channel and high-level terminals

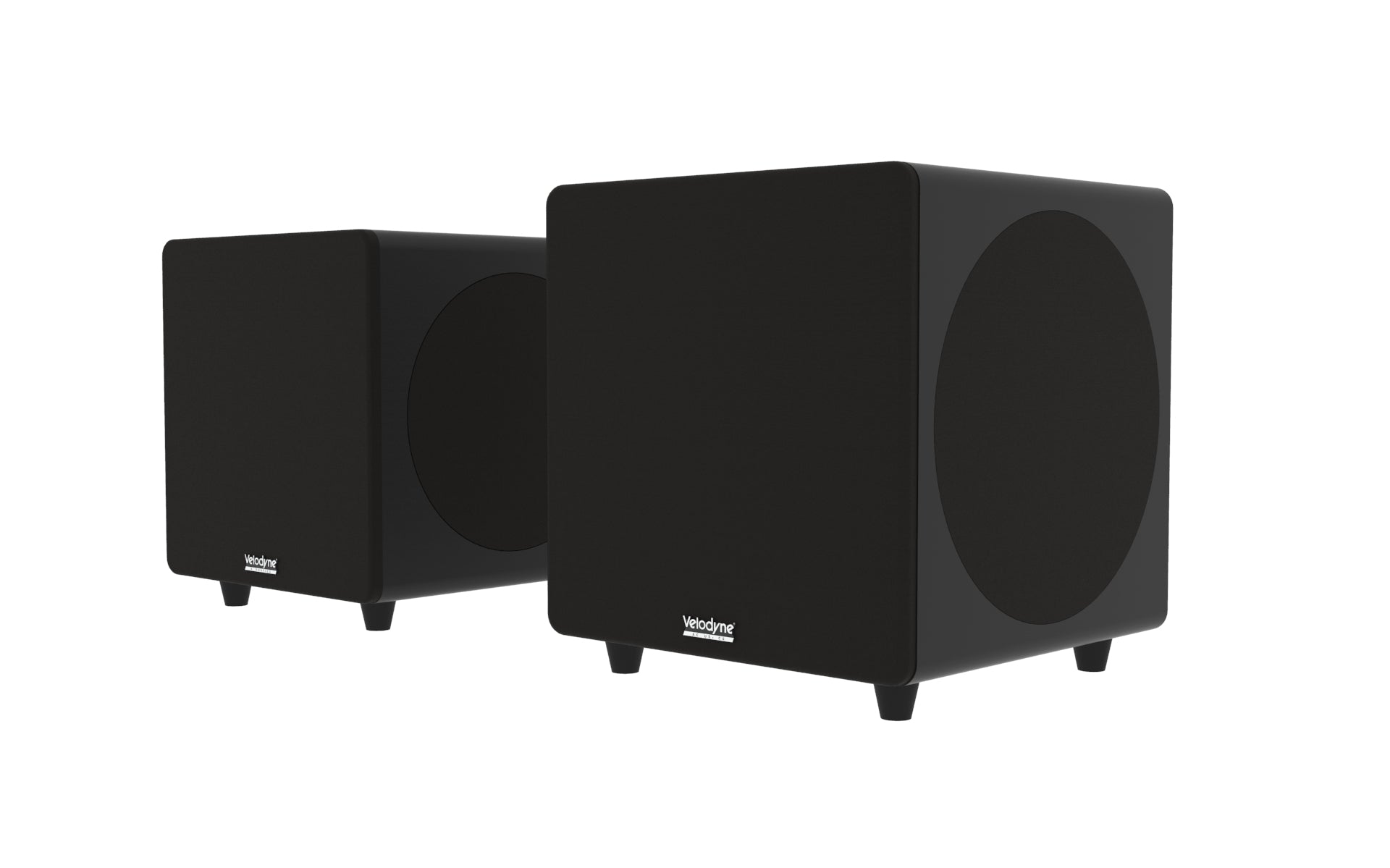

With both Deep Waves models in 10 and 12 inch

Velodyne Acoutics offers the highest precision, performance and adjustability even in an affordable model.

  • Deep Waves 10
Driver 10″ front firing driver
10” side radiating passive radiators
Amplifier Class D 600 watt dynamic 350 watt RMS
Overall Frequency Response: (± 3 dB) 28 Hz – 200 Hz
Overall Frequency Response: (± 10 dB) 25 Hz – 280 Hz
Low Pass Crossover 50 Hz to 180 Hz (12 dB/Octave)
Phase 0 / 180 degrees
Cabinet Design 22 mm MDF
Magnet Structure Dual ferrite magnet motor
Woofer 10” high excursion double vented basket driver with pp Membrane and convex cone
Voice Coil Four Layer 2,5″ / 63 mm voice coil
Input Gold plated Stereo/LFE RCA, Nickel plated High level in
Output Gold plated Stereo/ LFE RCA
Power Selector Off / Auto / On
Finishes Flat matte black paint
Dimensions (W/H/D) (includes feet and connectors) 38 cm x 40 cm x 32 cm
Weight (approx) 21 kg
Shipping Weight (approx) 24 kg

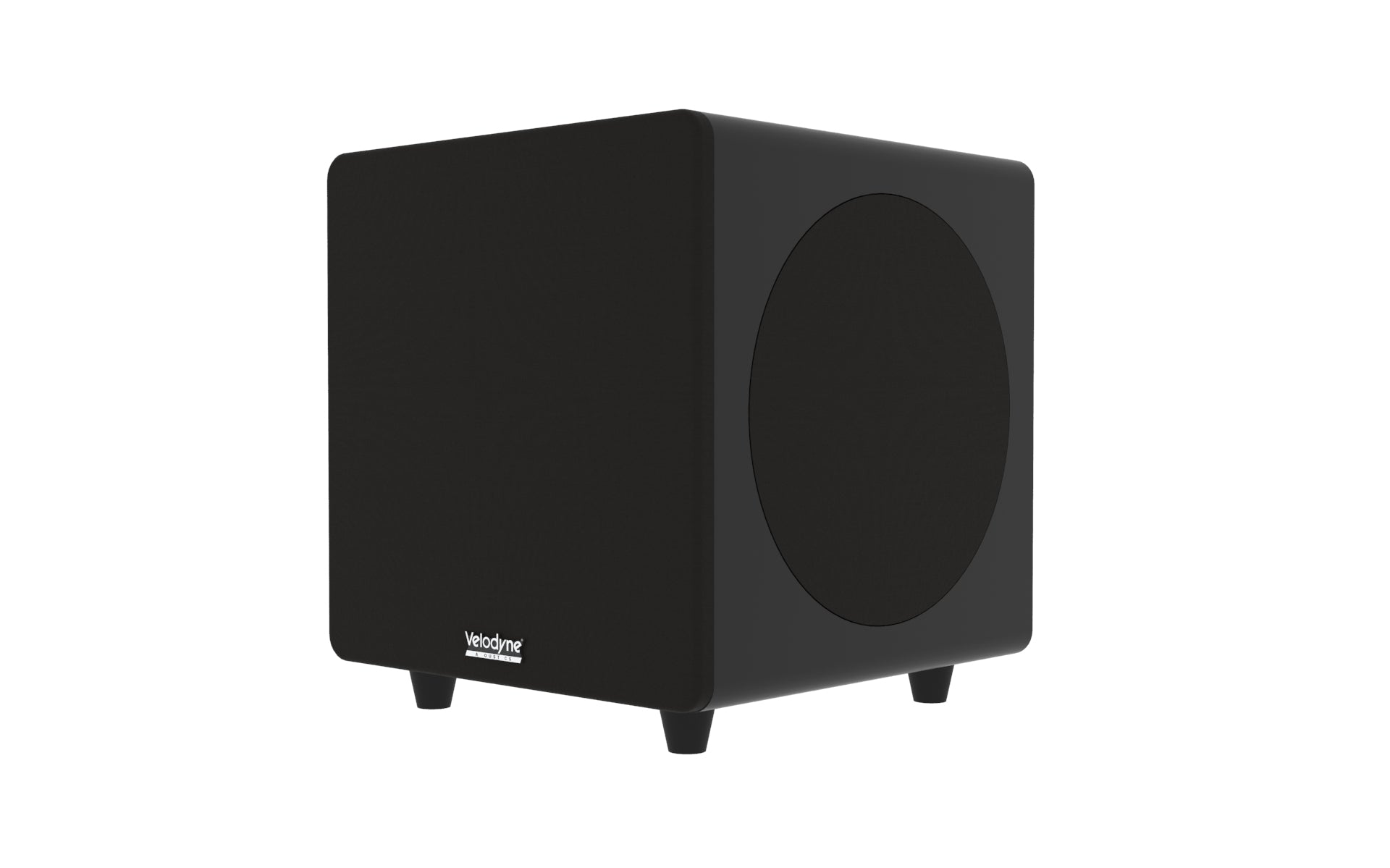

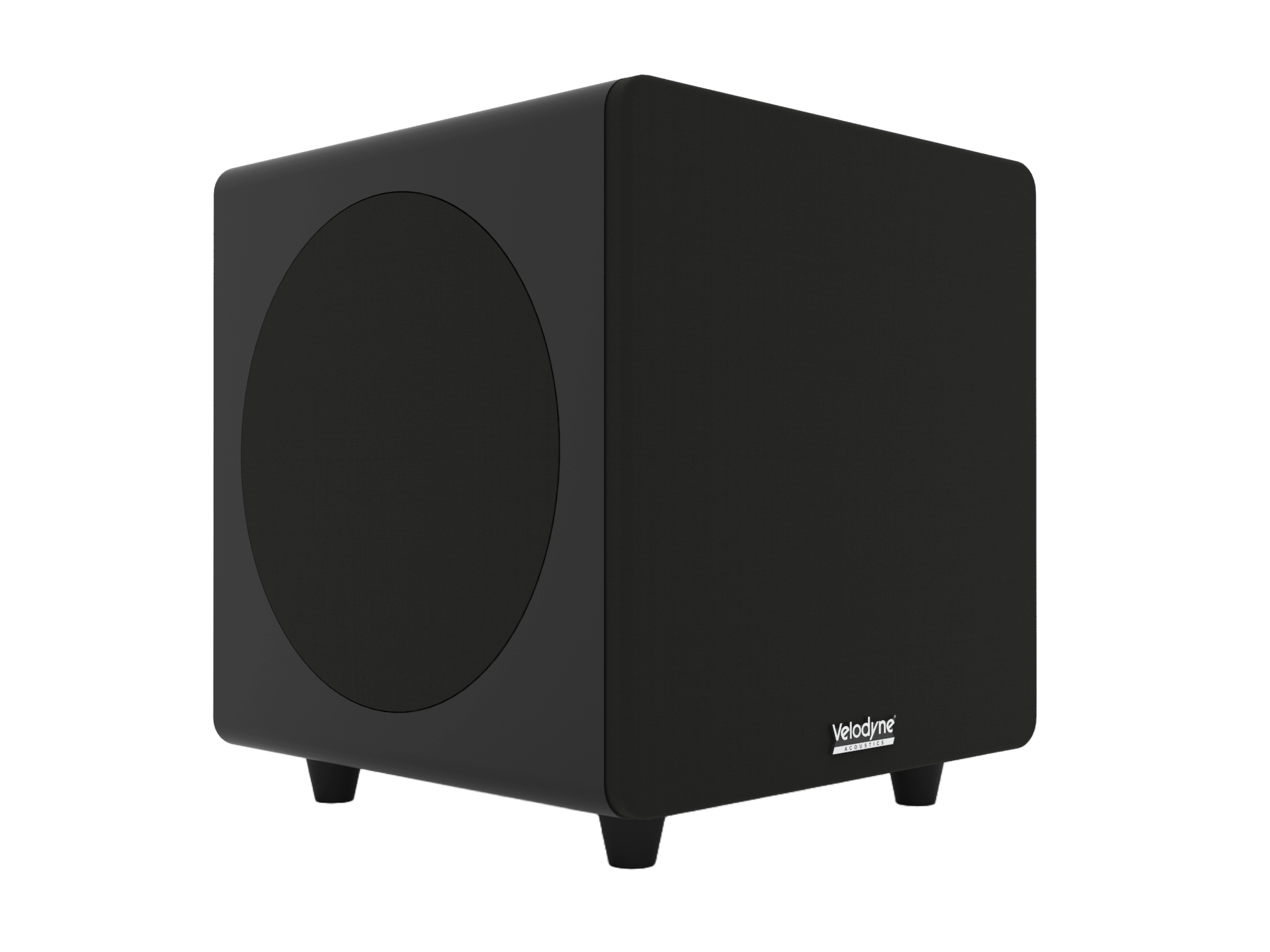

  • Deep Waves 12
Driver 12″ front firing driver
12” side radiating passive radiators
Amplifier Class D 800 watt dynamic 400 watt RMS
Overall Frequency Response: (± 3 dB) 25 Hz – 180 Hz
Overall Frequency Response: (± 10 dB) 22 Hz – 220 Hz
Low Pass Crossover 50 Hz to 180 Hz (12 dB/Octave)
Phase 0 / 180 degrees
Cabinet Design 22 mm MDF
Magnet Structure Dual ferrite magnet motor
Woofer 12” high excursion double vented basket driver with pp Membrane and convex cone
Voice Coil Four Layer 2,5″ / 63 mm voice coil
Input Gold plated Stereo/LFE RCA, Nickel plated High level in
Output Gold plated Stereo/ LFE RCA
Power Selector Off / Auto / On
Finishes Flat matte black paint
Dimensions (W/H/D) (includes feet and connectors) 41 cm x 48 cm x 41 cm
Weight (approx) 25 kg
Shipping Weight (approx) 28 kg
